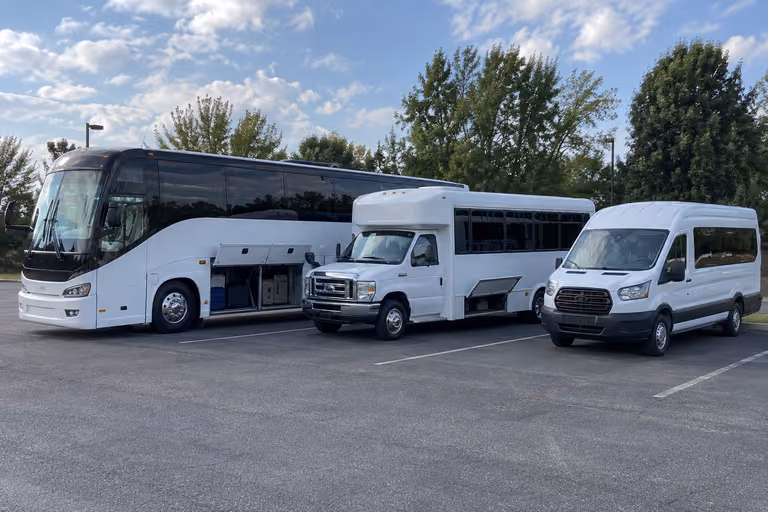

The Complete Guide to Charter Bus Dimensions: Length, Width, Height, Weight

How big is a charter bus? A full-size charter bus is about 45 feet long, 102 inches wide (that's 8 feet 6 inches), and roughly 11 to 12 feet tall, with a gross vehicle weight rating of about 50,000 to 54,000 pounds and seating for around 56 passengers. Shorter 35-foot charter buses seat about 40 to 44 passengers, and minibuses run from about 20 to 40 feet long depending on the make and model. Every number in this guide comes straight from the manufacturer spec sheets for popular buses from MCI, Prevost, Van Hool, Temsa, Starcraft, Glaval, Turtle Top, Grech Motors, and Mercedes-Benz (specs checked September 2026).

Wondering why charter bus dimensions matter for your group trip? Because the size of the bus decides where it can pull up, where it can park, how many suitcases fit underneath, and whether a 56-passenger charter bus, a 35-foot charter bus, or a minibus is the better fit for your plans! Below, you'll find side-by-side dimensions for 14 popular charter bus and minibus models, which ones carry the most luggage, which ones turn the tightest, and how to use all of it to pick the right bus. And when you're ready, Partybus.com makes it easy to find and book charter bus rentals, minibus rentals, and party bus rentals from a large network of bus companies, with online pricing in about 30 seconds!

Charter Bus Dimensions at a Glance

Here's the quick version by bus size. Each range below comes from the models covered in this guide, so you can see how a 45-foot charter bus stacks up against a 35-footer, a minibus, and a sprinter van before you dig into the details.

A quick note on that last column. The gross vehicle weight rating (GVWR) is the most a bus is rated to weigh fully loaded with passengers and bags, while the empty weight (which we'll get to in the weight section) is what the bus weighs before your group climbs aboard.

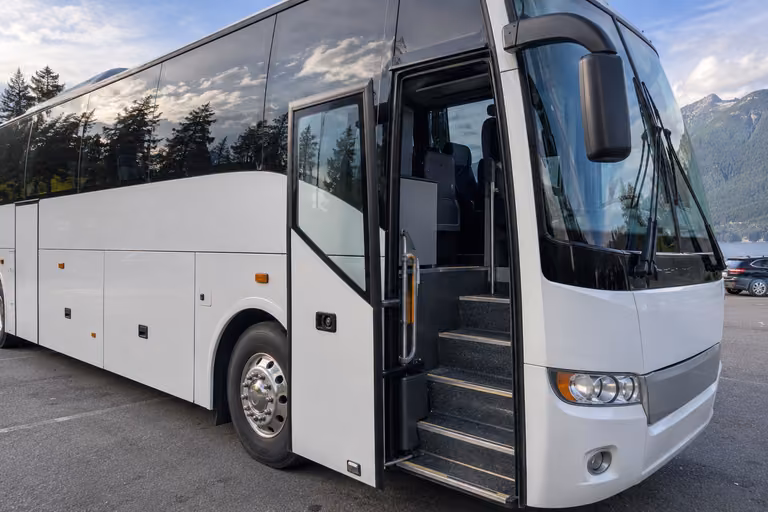

What Are Charter Bus Dimensions?

Charter bus dimensions are the measurements that tell you how much space a charter bus takes up and how much it can carry. Manufacturer spec sheets list the overall length from bumper to bumper, the overall width of the body, the overall height from the ground to the top of the roof, and the weight ratings, and most also list the interior headroom, the luggage space under the floor and in the overhead racks, and the turning radius.

In the bus rental world, a charter bus and a motorcoach are the same vehicle: the high-floor bus with forward-facing seats, overhead storage above every row, and luggage bays underneath. A minibus is a smaller bus built on a truck or van chassis from Ford or Freightliner, usually with a rear luggage area instead of bays under the floor. The charter buses you'll find through Partybus.com come from builders like MCI, Prevost, Van Hool, Setra, and Temsa, and minibuses come from builders like Grech, Glaval, Starcraft, and Turtle Top, so the bus for your trip will land close to the models in this guide. Want the backstory on each builder? Read our rundown of the most popular charter bus manufacturers.

Full-Size 45-Foot Charter Bus Dimensions by Make and Model

The 45-foot charter bus is the big one, and it's the bus most groups picture when they book a charter bus rental for an airport run, a sports team, or a multi-day trip. Here's how seven popular full-size models measure up side by side.

MCI J4500 and MCI D-Series Charter Bus Dimensions

MCI calls the J4500 CHARGE the all-electric version of the industry's best seller in the tour, charter, and employee shuttle markets, and its spec sheet lists a length of 45.58 feet, a width of 102 inches, a roof height of 140.75 inches, and 56 passengers. The MCI J-Series brochure adds that the J4500 seats 56 in its standard layout and up to 60 passengers, and that a passive rear steering system gives it a turning radius of 40 feet 11 inches.

MCI's D-Series is where the luggage numbers get big! The MCI D4505 spec sheet lists 45.42 feet of length, 137 inches of height (134 inches with an optional lower roof), 78.25 inches of interior height, 523 cubic feet of luggage space, and 55 passengers, and the MCI D45 CRT spec sheet lists 45.10 feet of length, 138.6 inches of height, 78 inches of interior height, 560 cubic feet of luggage space, and 56 passengers. MCI markets the D45 CRT for commuter service, but its size makes it a great point of comparison for any group that's bringing a lot of bags.

Prevost H3-45 and X3-45 Charter Bus Dimensions

Prevost builds two 45-foot charter buses with very different profiles. The Prevost H3-45 spec sheet lists 56 standard seats, 45 feet of length, 102 inches of width, and 146.25 inches of height (about 12 feet 2 inches), which makes it the tallest full-size charter bus in this guide. That extra height sits under the floor, where the H3-45 carries 460 cubic feet of luggage space plus another 117 cubic feet in the overhead racks.

The Prevost X3-45 spec sheet lists 55 seats, 45 feet of length, 101.5 inches of width, and 133.875 inches of height (about 11 feet 2 inches), so it's the lowest-profile 45-footer here. Inside, it actually has more headroom than the H3-45 at 79.5 inches floor to ceiling, but it trades away luggage space, with 380 cubic feet underneath and 107 cubic feet overhead.

Van Hool CX45 and Temsa TS45 Charter Bus Dimensions

The Van Hool CX45 specs from ABC Companies (Van Hool's exclusive North American distributor) list 45 feet of length, 102 inches of width, 11 feet 6 inches of height, 75.75 inches of headroom, 440.4 cubic feet of underfloor luggage space, 87.5 cubic feet of parcel rack storage, a turning radius of 43 feet 11.5 inches, and a GVWR of 54,000 pounds, with 56 seats standard and room for up to 60 passengers. Want more elbow room? A 2/1 seating layout is listed as an option too.

The Temsa TS45 comes in at almost the same outside size, with 56 seats, 45 feet of length, 102 inches of width, and 11 feet 6 inches of height, plus 75.75 inches of interior height, 460 cubic feet of luggage capacity, and a gross vehicle weight of 51,500 pounds.

40-Foot and 35-Foot Charter Bus Dimensions by Make and Model

Not every group needs 45 feet of bus! A shorter charter bus gives you the same high-floor seats, overhead racks, and underfloor luggage bays in a size that's easier to fit into a hotel entrance or a tight pickup spot. Here's how four popular shorter models compare.

The 35-foot charter buses really shine when it comes to turning around. MCI says the J3500 has a turning radius of under 33 feet on its J-Series page, and ABC Companies lists the Van Hool CX35 at 34 feet 3.8 inches, compared with 43 feet 11.5 inches for the 45-foot CX45. MCI offers the J3500 in 40-, 42-, and 44-seat layouts, and the Temsa TS35 page lists 40 + 1 seats, 100.5 inches of width (a little narrower than a full-size bus), and 11 feet 7 inches of height. A group of about 40 gets charter bus comfort in a bus that's 10 feet shorter than a full-size model!

Minibus Dimensions by Make and Model

Minibuses are where the size options really open up. These buses are built on Ford or Freightliner truck chassis, so they're shorter, narrower in some cases, and a lot lighter than a charter bus, and most carry bags in a rear luggage area or overhead racks instead of underfloor bays. Here's how popular minibus models from Starcraft, Grech, Turtle Top, and Glaval measure up.

Starcraft Allstar and Allstar XL Minibus Dimensions

The Starcraft Allstar brochure lists four lengths on Ford E350 and E450 chassis, from a 20-foot bus with 17 passengers and an 11,500-pound GVWR up to a 25-foot bus with 25 passengers and a 14,500-pound GVWR, all 96 inches wide, 115 to 116 inches tall, and 80 inches from floor to ceiling. That makes the Allstar a nimble pick for hotel shuttles and quick runs around town! Need more seats? The Starcraft Allstar XL Freightliner brochure lists 32-, 36-, and 40-foot versions carrying 33, 39, and 45 passengers, with a 96-inch or optional 102-inch body, 131 inches of height, and a GVWR of 26,000 or 30,000 pounds.

Glaval Legacy Minibus Dimensions

The Glaval Legacy brochure lists the same Freightliner S2C sizing as the Allstar XL, with up to 45 passengers, bus lengths of 32 to 40 feet, 96- or 102-inch widths, 131 inches of overall height, and 79.75 inches of interior height. The layouts are where the Legacy gets flexible, from a 41-passenger floor plan with rear luggage to a 45-passenger plan with no luggage area at all, so ask about rear luggage space if your group is bringing bags.

Turtle Top Odyssey XL Minibus Dimensions

The Turtle Top Odyssey XL spec sheet lists a Ford F-550/F-600 version from 29.5 to 36.5 feet long and a Freightliner S2C version from 31 feet 3 inches to 39 feet long, both 102 inches wide (not counting mirrors) with 80 inches of interior height. Turtle Top counts every seat on board, so the 41-occupant Freightliner version carries up to 40 passengers and the 36-occupant Ford version carries up to 35. Plus, the Ford version stands 125 inches tall, which is a full 6 inches lower than the Freightliner-based Glaval Legacy.

Grech GM28, GM33, and GM40 Minibus Dimensions

Grech Motors publishes capacity and weight ratings for its luxury minibuses. The Grech GM28 is built on a Ford E450 chassis with room for up to 22 passengers plus rear luggage and a 14,500-pound GVWR. The Grech GM33 steps up to a Ford F600 chassis with 28 passengers and rear luggage (or 32 without) and a 22,000-pound GVWR, and the Grech GM40 moves to a Freightliner S2 chassis with up to 40 passengers plus rear luggage and a 33,000-pound GVWR. Grech lists the exterior dimensions of each model in drawings on its site rather than in text, so the table above sticks to the numbers Grech spells out.

How Long Is a Charter Bus?

A full-size charter bus is about 45 feet long, and every 45-foot model in this guide lands between 45 and 45.58 feet. The shorter charter buses come in at 40.5 feet (MCI D4005) and 35 feet (MCI J3500, Van Hool CX35, and Temsa TS35), while minibuses run anywhere from 20 feet for a small Starcraft Allstar to 40 feet for a Glaval Legacy or Starcraft Allstar XL.

Put it this way: at 45.58 feet long, the MCI J4500 CHARGE is about twice the length of a 15-passenger Mercedes-Benz Sprinter Passenger Van, which measures 274 inches (22 feet 10 inches) from end to end. That extra length is exactly why one charter bus can replace a whole string of cars and vans!

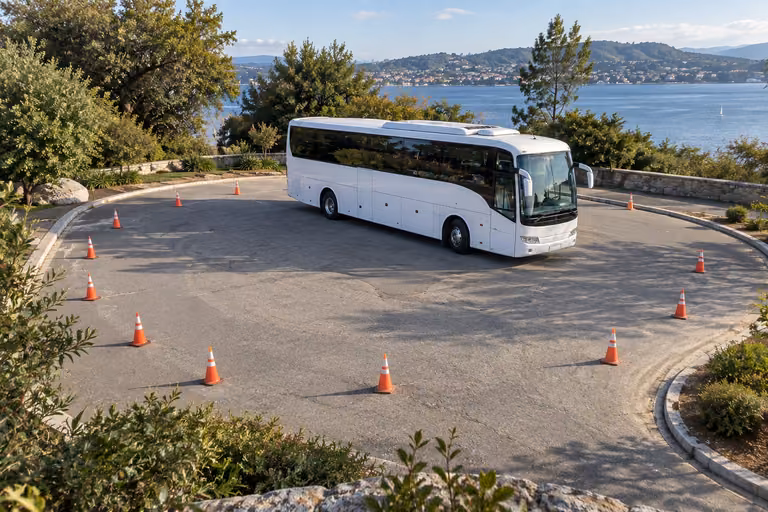

Charter Bus Turning Radius by Model

Length also decides how much room a bus needs to turn around, and this is where the models really spread out. Here's the turning radius each manufacturer lists, from tightest to widest.

Notice something interesting? The 45-foot J4500 turns tighter than the 40.5-foot D4005, so steering setup matters just as much as length. What does that mean for you? A hotel porte-cochere, a winding wedding venue entrance, or a residential cul-de-sac may not leave a full-size bus enough room to swing around, so mention any tight pickup or drop-off spots in your trip details when you request your quote. That way, you can compare a shorter charter bus or a minibus for that stop, or plan a curbside pickup out front instead!

How Wide Is a Charter Bus?

Almost every charter bus is 102 inches wide, which works out to 8 feet 6 inches. Six of the seven full-size models in this guide measure exactly 102 inches, the Prevost X3-45 is a hair narrower at 101.5 inches, and the 35-foot Temsa TS35 comes in at 100.5 inches.

Minibuses are where the width choice shows up. The Starcraft Allstar is 96 inches wide, the Glaval Legacy and Starcraft Allstar XL come in 96- or 102-inch bodies, and the Turtle Top Odyssey XL is 102 inches wide (not counting mirrors). For comparison, Mercedes-Benz lists the Sprinter Passenger Van at 92 inches wide with its mirrors included, so a charter bus is still about 10 inches wider than a sprinter van before you even count the bus mirrors!

How Width Shapes the Seating Inside

That 8-and-a-half-foot width is what lets a standard charter bus layout put two seats on each side of a center aisle, and that's how a 45-foot bus fits 56 passengers. Want more elbow room for an executive team or a long-distance trip? Prevost lists an optional 2 + 1 seating configuration for both the H3-45 and the X3-45, and ABC Companies lists 2/1 seating as an option on the Van Hool CX45 (two seats on one side of the aisle, one on the other), so mention that layout when you request your quote if that's what your group wants. For everything else you'll find inside, from reclining seats to onboard restrooms, check out the complete guide to charter bus amenities.

How Tall Is a Charter Bus?

A full-size charter bus is about 11 to 12 feet tall. The Prevost X3-45 is the lowest 45-footer in this guide at about 11 feet 2 inches, the MCI D4505 comes in at about 11 feet 5 inches, the Van Hool CX45 and Temsa TS45 are 11 feet 6 inches, the MCI D45 CRT is about 11 feet 7 inches, the MCI J4500 CHARGE is about 11 feet 9 inches, and the Prevost H3-45 is the tallest at about 12 feet 2 inches. Minibuses sit lower, from about 9 feet 7 inches for a Starcraft Allstar to about 10 feet 11 inches for a Glaval Legacy.

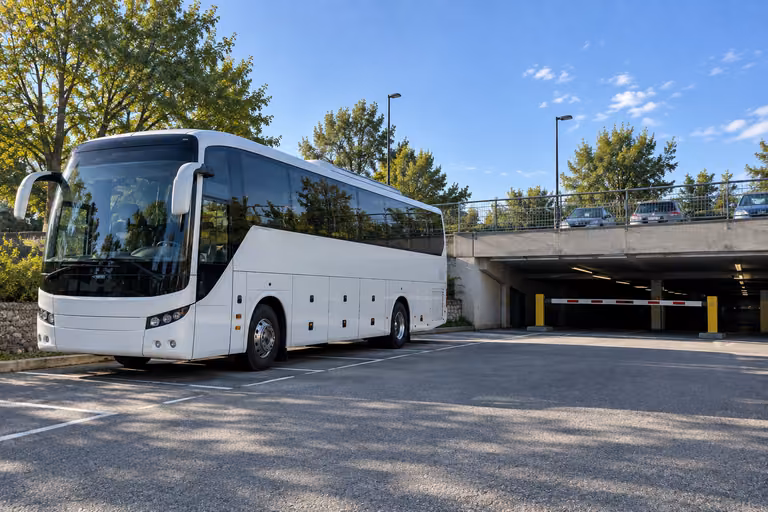

Why a Charter Bus Can't Use Most Parking Garages

Where charter bus height matters most is anything built for cars. A bus that stands 11 to 12 feet tall won't fit under the entrance of a typical parking garage, a drive-through canopy, or a low hotel overhang, and even a 10-foot minibus is too tall for most garages. That's why airports, stadiums, and convention centers point buses to bus zones and surface lots instead. Heading to a venue with a parking garage out front? The bus drops your group at the designated bus zone or curb, then parks wherever the venue allows oversized vehicles. The guide to charter bus parking and loading walks through staging areas, loading zones, and how to plan each stop.

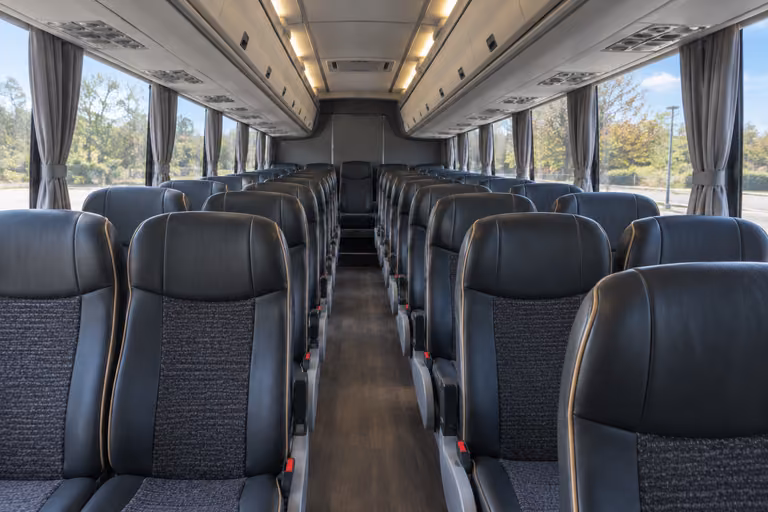

Interior Height and Headroom by Model

Inside, every bus in this guide has standing headroom for boarding while parked, but the numbers still vary more than you'd think. Stay seated whenever the bus is moving. The minibuses actually win on headroom, with 80 inches on the Starcraft Allstar and Turtle Top Odyssey XL and 79.75 inches on the Glaval Legacy. On the charter bus side, the Prevost X3-45 leads at 79.5 inches, followed by the MCI D4505 at 78.25 inches, the MCI D45 CRT at 78 inches, the Prevost H3-45 at 77 inches, the Van Hool CX45 and Temsa TS45 at 75.75 inches, and the Temsa TS35 at 75 inches. For comparison, Mercedes-Benz lists 75.5 inches of standing height on the high-roof Sprinter Passenger Van. The tall folks in your group will appreciate every one of those inches on a long ride!

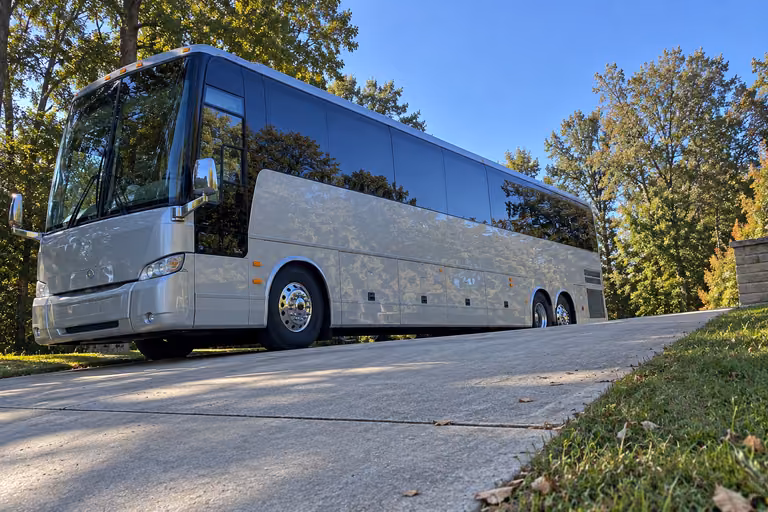

Steep Driveways, Ramps, and Speed Bumps

One charter bus height detail most people never think about is clearance at the front and middle of the bus. MCI lists a 9.5-degree approach angle and an 8.8-degree breakover angle for the J4500 CHARGE, which describe how steep a ramp the bus can start up before the front end scrapes (approach angle) and how sharp a crest it can roll over before the underside touches (breakover angle). Picking everyone up at a hillside home, a steep parking lot entrance, or a spot with big speed bumps? Mention it with your trip details so your pickup spot can be planned around it!

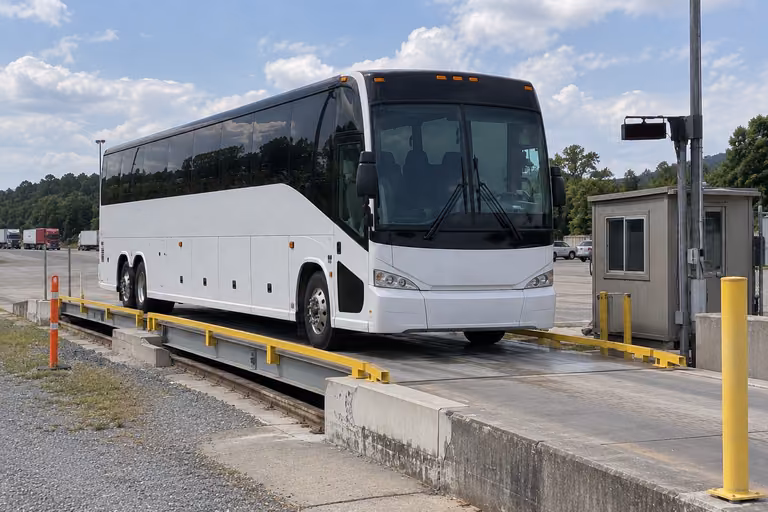

How Much Does a Charter Bus Weigh?

An empty full-size charter bus weighs about 37,000 to 45,000 pounds, and a fully loaded one is rated to weigh up to about 50,000 to 54,000 pounds. Prevost lists a wet weight (weighed with fluids on board) of 37,300 pounds for the X3-45 and 39,468 pounds for the H3-45, with a GVWR of 53,000 pounds on both, and MCI lists an estimated curb weight of about 45,000 pounds for the battery-electric J4500 CHARGE with a GVWR of 54,000 pounds.

The gap between those two numbers is the room left over for your group and everything it's bringing. On the H3-45, that's roughly 13,500 pounds of passengers, carry-ons, and suitcases, and on the X3-45 it's about 15,700 pounds. Mercedes-Benz lists a base curb weight of 6,371 pounds and a GVWR of 9,480 pounds for the 15-passenger Sprinter, so an empty charter bus weighs about as much as six empty sprinter vans!

Here's how the GVWR steps down as the bus gets smaller, from the biggest charter buses at 54,000 pounds (MCI J4500 CHARGE, MCI D45 CRT, and Van Hool CX45) to the 35-foot Van Hool CX35 at 41,900 pounds and Temsa TS35 at 37,448 pounds, then to minibuses like the Grech GM40 at 33,000 pounds, the Glaval Legacy at 26,000 to 30,000 pounds, the Grech GM33 at 22,000 pounds, and the Starcraft Allstar at 11,500 to 14,500 pounds.

So what does all of that mean for your trip? Bus weight matters most right where your group gets on. A bus weighing 50,000-plus pounds can sink into a soft grass field at an outdoor wedding or a farm venue after a rainy week, and some private roads and small bridges post lower weight limits, so mention any grass, gravel, or dirt pickup spots in your trip details. A lighter minibus may be the better fit for that stop, or the pickup can be set up on pavement instead.

How Much Luggage Fits on a Charter Bus?

A full-size charter bus holds hundreds of cubic feet of luggage in the bays under the floor, and the difference from one model to the next can be more than 50 percent. We divided each manufacturer's underfloor luggage figure by its standard seat count to see how much space each passenger really gets.

Heading to the airport with a full group and checked bags? The MCI D-Series buses give each passenger the most room underneath, while the Prevost X3-45 and Temsa TS35 are better suited to lighter packers. Overhead racks add more on top of that, with 117 cubic feet on the Prevost H3-45, 107 cubic feet on the X3-45, 87.5 cubic feet on the Van Hool CX45, and 80.16 cubic feet on the CX35. Did you know the overhead racks on an H3-45 hold as much as the entire cargo area of a 15-passenger Sprinter van? Mercedes-Benz lists 117 cubic feet of cargo volume for the Sprinter Passenger Van, exactly the same as the H3-45's overhead storage. Not sure what to put in the overhead bin versus the bays underneath? The charter bus packing and carry-on guide has you covered.

How a Wheelchair Lift Changes Luggage Space

If anyone in your group uses a wheelchair, this charter bus detail is worth knowing. Adding a wheelchair lift takes 30 cubic feet out of the luggage bays on both Prevost models (down to 430 cubic feet on the H3-45 and 350 cubic feet on the X3-45), while on the Van Hool CX45 it drops underfloor space from 440.4 to 360.8 cubic feet and on the CX35 from 281.46 to 244.38 cubic feet. Plan your bags around it and mention that you need an ADA-accessible charter bus when you request your quote!

Charter Bus vs. Minibus, Party Bus, and Sprinter Van Sizes

A charter bus is the biggest bus you can rent through Partybus.com, but it isn't always the right size for your group! Here's how the four most popular bus types stack up across the network.

Trying to choose? A 15- to 35-passenger minibus is small and nimble enough for tight downtown streets and hotel entrances, and it still comes with power outlets, overhead storage, and WiFi on many models. A 15- to 50-passenger party bus trades luggage space for a full bar, LED lighting, a Bluetooth sound system, TVs, and wraparound seating, which makes it a blast for a birthday or a bachelorette night (the complete guide to party bus rentals covers what to expect onboard). And a full-size charter bus brings the reclining seats, WiFi, restroom options, and underfloor luggage bays your group wants for the long haul.

Want a closer look at each one? Read the complete guide to bus types, or browse the bus types available through Partybus.com with photos and amenities for every size.

How to Use Charter Bus Dimensions to Plan Your Trip

Now that you know the numbers, here's how to put them to work when you find and book a charter bus rental or minibus rental for your group. First time renting? Start with the ultimate guide to renting a charter bus, then come back to these four tips.

1. Match the Bus to Your Headcount and Your Bags

Start with your passenger count, then think about what everyone's bringing. A 56-passenger charter bus with 450 to 560 cubic feet of underfloor luggage space is built for airport runs, sports teams with gear, and multi-day trips, a 35-foot charter bus covers a group of about 40 with bays underneath, and a minibus with a rear luggage area works great for a night out or a quick shuttle across town. Heading out for a weekend with a full group and full suitcases? Go with the full-size charter bus!

2. Share Any Tight Pickup and Drop-Off Spots

A 45-foot charter bus with a turning radius of roughly 41 to 51 feet needs room to pull in and pull back out, while a 35-foot charter bus can turn in about 33 to 34 feet. Hotel entrances, gated neighborhoods, cul-de-sacs, and long private driveways can all be tricky, so list your pickup and drop-off addresses in your trip details (and note anything tight, steep, or unpaved) when you fill out the form.

3. Plan for Bus Parking, Not Car Parking

Because a charter bus is 11 to 12 feet tall and about 45 feet long, it parks in bus zones, oversized-vehicle lots, and staging areas, never in a garage or a regular car space. Some stadiums, arenas, and attractions require bus parking to be reserved ahead of time, and those venue parking costs aren't included in your free price quote, so lock in bus parking at the same time you book the bus. Planning a trip in a specific city? Our city pages cover bus zones and drop-off spots at popular venues, and you can find yours on the list of cities we serve.

4. Ask for the Model, Layout, or Features You Need

Have a specific bus in mind, like a Prevost H3-45 for extra luggage, a 2 + 1 seating layout, a 35-foot charter bus, or a minibus with a wheelchair lift? Just include it in your trip details when you request your quote, and the earlier you ask, the more likely providers in your area have it open for your date. The online search may not include every available vehicle, so call 877-563-2133 if you need something else!

Frequently Asked Questions About Charter Bus Dimensions

How long is a 56-passenger charter bus?

A 56-passenger charter bus is about 45 feet long. The Prevost H3-45, Van Hool CX45, and Temsa TS45 all measure 45 feet with 56 standard seats, the MCI D45 CRT is 45.10 feet, and the all-electric MCI J4500 CHARGE is 45.58 feet.

How tall is a charter bus in feet?

Most full-size charter buses are between about 11 and 12 feet tall. The Prevost X3-45 is about 11 feet 2 inches, the Van Hool CX45 and Temsa TS45 are 11 feet 6 inches, the MCI J4500 CHARGE is about 11 feet 9 inches, and the Prevost H3-45 is about 12 feet 2 inches.

Which charter bus has the most luggage space?

Of the models in this guide, the MCI D45 CRT lists the most luggage space at 560 cubic feet. The MCI D4505 follows at 523 cubic feet, then the Prevost H3-45 and Temsa TS45 at 460 cubic feet each and the Van Hool CX45 at 440.4 cubic feet. The Prevost X3-45 lists 380 cubic feet.

What is the smallest charter bus?

The shortest charter buses in this guide are 35 feet long. The MCI J3500 seats up to 44 passengers, the Temsa TS35 lists 40 + 1 seats, and the Van Hool CX35 seats up to 40, and all three still carry luggage bays under the floor. Enter your date and group size in the online quote form to see which charter bus sizes are available in your city.

How big is a minibus compared to a charter bus?

A minibus is usually 5 to 25 feet shorter and a lot lighter than a full-size charter bus. A Starcraft Allstar runs 20 to 25 feet long with a GVWR of 11,500 to 14,500 pounds, and the largest Freightliner-based minibuses, like the Glaval Legacy and Starcraft Allstar XL, reach 40 feet with a GVWR of 26,000 to 30,000 pounds, compared with about 45 feet and 50,000 to 54,000 pounds for a full-size charter bus.

Can a charter bus fit in a parking garage?

In most cases, no. At 11 to 12 feet tall, a charter bus is too tall for parking garages built for cars, so it drops your group at a bus zone or the curb and parks in a surface lot or oversized-vehicle area that allows buses. If the only parking at your destination is a garage, mention it in your trip details so your pickup and drop-off can be planned around a curbside spot.
